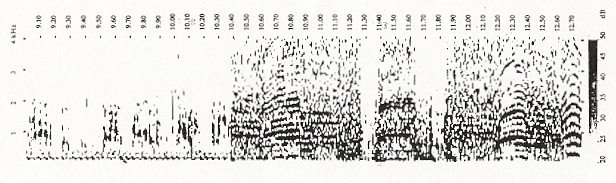

Figure 12. Spectra of Channel II for the second "Bell" segment. The horizontal axis is time (seconds) and the vertical axis is frequency (kHz). The grey-intensity scale (dB) is indicated at right. The bell sound is from 10.40 to 10.60 and 10.85 to 11.10 secs.
