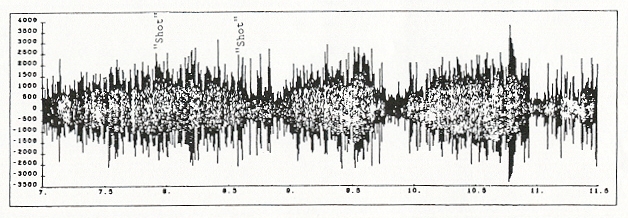

Figure 14. Envelope of the Channel-I signal for the "Hold-Everything" phrase. The horizontal axis is time (seconds) and the vertical axis is the signal amplitude. The timings of the third and the fourth "shots" are also indicated on the plot. Note the AGC behavior following the two heterodynes (9.52 to 9.64 and 10.78 to 10.93 secs).
